VMware workstation won't allow independent bridges to host NIC

dalearyous

[H]ard|Gawd
Joined
Jun 21, 2008
Messages
1,922

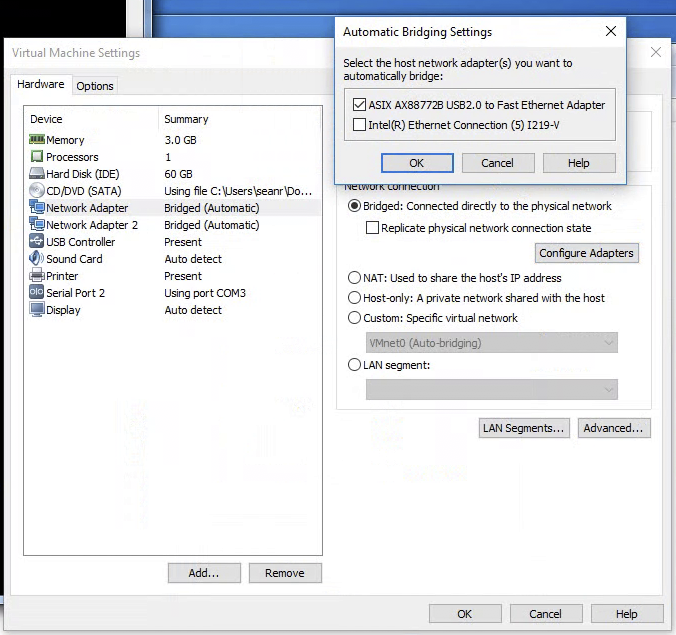

why can't you configure Network adapter and network adapter 2 independently to bridge to different host NICs? if i change one it changes the other. if i check both boxes for both network adapter and network adapter 2 i can only access one of them.

what am i missing?! see image

i basically want
network adapter ----bridged---> Intel NIC
network adapter 2 -----bridged---> ASIX USB NIC

*edit* vmware workstation 14 player


Attachments

  • Screen Shot 2019-03-06 at 10.07.23 AM.png
    Screen Shot 2019-03-06 at 10.07.23 AM.png
    392.1 KB · Views: 0
Last edited:

Spartacus09

[H]ard|Gawd
Joined
Apr 21, 2018
Messages
1,871
Automatic is meant to be easy, but not advanced configuration.
You likely need to setup a custom one for the second nic and use that vs. letting workstation try to figure it out.


dalearyous

[H]ard|Gawd
Joined
Jun 21, 2008
Messages
1,922
Automatic is meant to be easy, but not advanced configuration.
You likely need to setup a custom one for the second nic and use that vs. letting workstation try to figure it out.

How do I setup a custom one? VMware workstation settings are very limited.


dalearyous

[H]ard|Gawd
Joined
Jun 21, 2008
Messages
1,922
ok so for anyone else, its in the virtual network editor:


Attachments

  • Screen Shot 2019-03-06 at 12.37.08 PM.png
    Screen Shot 2019-03-06 at 12.37.08 PM.png
    334.7 KB · Views: 0
