Help identifying a Capacitor.

N

Non

n00b
Joined
Jun 16, 2016
Messages
2

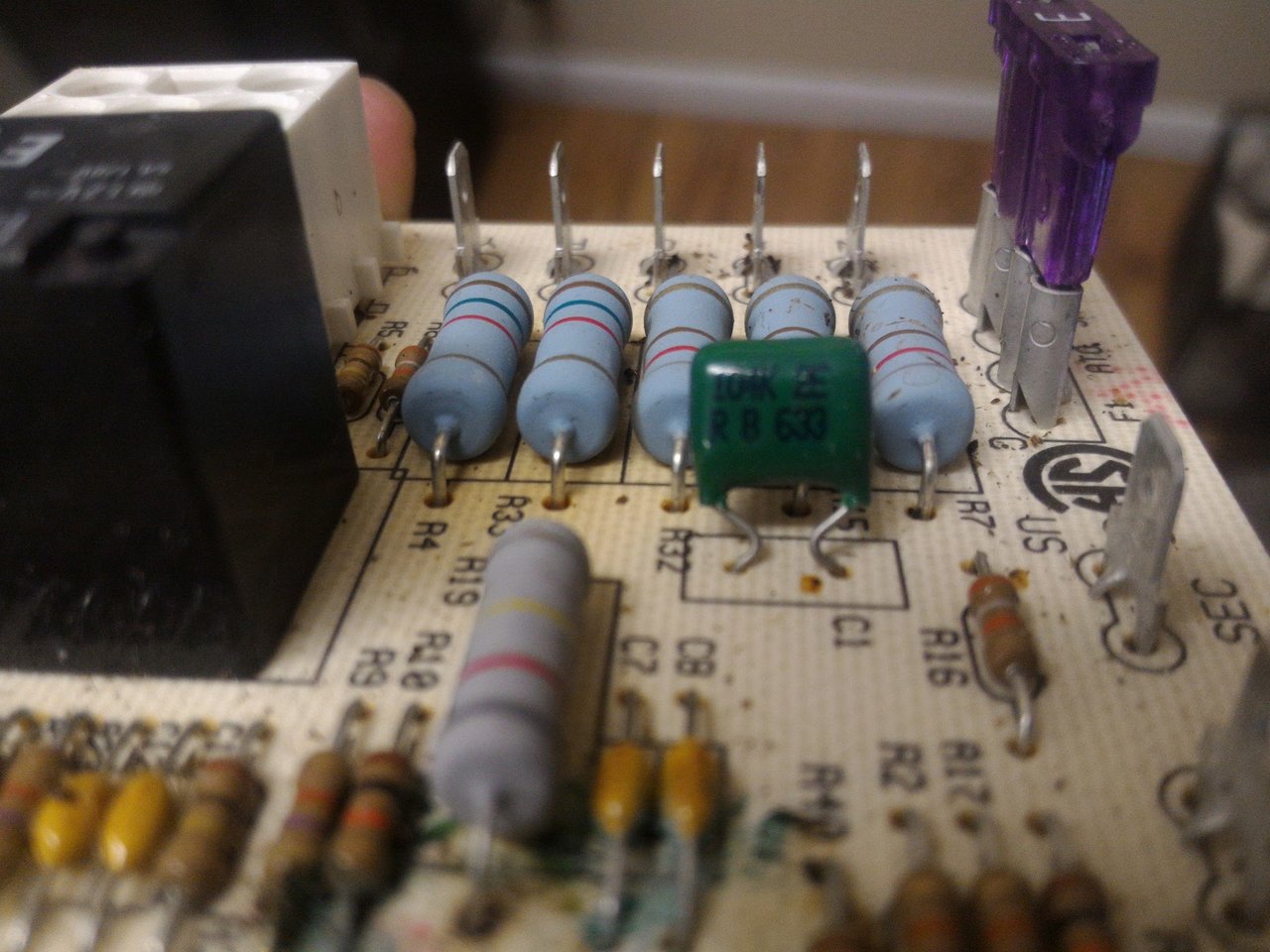

Hello! Could someone help me identify a capacitor? I've tried googling the capacitor but I cant find one that matches expactly how it shoes on the cap. I may be doing it wrong. It has a green cap and it shows this number:
104K 2E
R B 633

Sorry for the blurry image that was the best I could focus it... Thanks


Looks to me like a plastic film 250V .10 uf +/- 10%

Hard to tell though, the manufacturer put a lot of extra crap on there. 2E usually denotes 250V operating voltage, 104 is .10uf and K is the 10% tolerance. The other stuff might be physical dimension specs.

This concurs with the other thread linked here where they note the circuit is not going to see more than 240V.

Last edited:
Hi! Thank you for replying!
Starhawk, I did see the post. It ended up being another problem, so he had to buy a whole new motherboard.

jojo69, Thanks! I've googled what you posted couldnt really find any. Is there a better website to buy these sort of things?

Thanks again. :)
